MOQ : 1

Description

BIOMETRIC

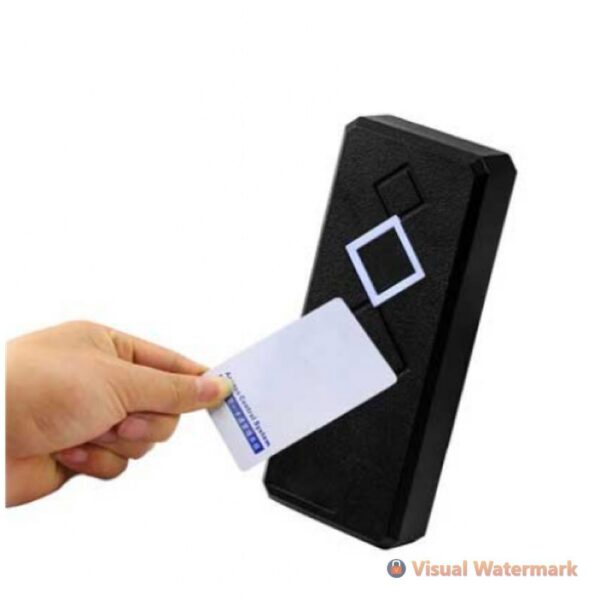

Model No	RFR-104-26/34WEI
Product	Access Control
Key Feature	Have the high ingenious receiving,low current and high stability. Widely apply in access control, time attendance, electronic toll system, anit-theft and RF Identification various area. It is useful for safety door systerm, easy to connect and use. With full pc glue in the back side,IP65 Waterproof Frequency: 125KHZ ID Read Cards EM4100 and compatible cards Supporting Cards Operation Read the Serial Number of ID Cards Interface Wiegand 26/34 Read Time < 120 ms Read Distance 0 – 15 cm Working Voltage/Current DC 12V/Max 60mA Power Consumption < 1w System Protection Power Protection in Reverse Meet. Data Line Compression Resistance Protection. Max. ±15V Data Transferring Distance 60 – 100 meters Operating Temperature 0 – 60 Storage Temperature -20 – 80 Material Plastic (RoHS) Dimensions 1024316(mm) Operating Humidity IP65
Warranty	1 Year from Mantra Service Center
For More Information	https://www.mivanta.com/Brands/Morx/RFR-104
